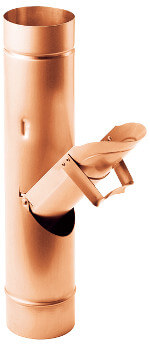

Rainwater pipe flap

	Dimension/length in mm	Copper
	60	60801
	75	60802
	76	60803
	80	60804
	85	60805
	87	60806
	100	60810
	120	60812
	to plug in *as long as stock lasts



Rainwater pipe flap with sieve

	Dimension/length in mm	Copper
	75	60822
	76	60813
	80	60814
	87	60816
	100	60818
	120	60820
	Ersatzsieb 100	54222
	to plug in, *stainless steel sieve 1.5 mm additional accessories on request



Rainwater pipe flap

	Dimension/length in mm	Copper
	75	60855
	80	60856
	87	60857
	100	60858
	120	60859
	to plug in



Water collector with hose adapter set

	Dimension/length in mm	Copper
	76	60675
	80	60676
	87	60677
	100	60678
	120	60679
	to plug in, with installation set, 1 inch



Foliage retainer with leaf cage

	Dimension/length in mm	Copper
	76	60794
	80	60795
	87	60796
	100	60797
	with removable leaf cage



Anti-syphon trap

	Dimension/length in mm	Copper
	100	54202
	stainless steel 1.4301, protection against odours and rodents, with copper cover



Sliding sleeve

	Dimension/length in mm	Copper
	76	60735
	80	60736
	87	60737
	100	60738
	120	60739
	to plug in



Vertical pipe cap high

	Dimension/length in mm	Copper
	76/115	60828
	80/100	60829
	80/115	60830
	80/150	60832
	87/115	60838
	87/150	60840
	100/115	60846
	100/150	60848
	120/150	60850
	120/180	60852
	to put on, with collar



Vertical pipe cap small

	Dimension/length in mm	Copper
	76/90	60699
	60/115	60700
	76/115	60701
	76/150	60710
	80/115	60702
	80/150	60711
	87/115	60703
	87/150	60712
	100/115	60704
	100/150	60713
	120/140	60705
	120/150	60706
	120/180	60714
	150/180	60715
	to put on, with collar



Conical adapter

	Dimension/length in mm	Copper
	100/60	60825
	*can be adjusted by cutting to the following diameters: 100/76, 100/80, 100/87



Reducer

	Dimension/length in mm	Copper
	76/60	60690
	80/60	60688
	87/76	60691
	100/76	60695
	100/80	60689
	100/87	60692
	120/100	60693
	150/120	60694



Branch pipe 72°

	Dimension/length in mm	Copper
	50/50	60949
	60/60	60950
	76/60	60951
	76/76	61021
	80/60	60955
	80/80	61023
	87/60	61027
	87/76	61024
	87/80	61025
	87/87	61026
	100/60	60970
	100/76	60971
	100/80	60972
	100/87	60973
	100/100	60974
	120/100	60975
	120/120	60976
	60/50, 76/50, 80/50, 80/76, 87/50, 87/60, 100/50, 120/50, 120/60, 120/76, 120/80, 120/87 on request branch pipes 45° and 87° on request



Connection sleeve

	Dimension/length in mm	Copper
	60	60740
	76	60741
	80	60742
	87	60743
	100	60744
	120	60745
	to plug in



Continuous bead

	Dimension/length in mm	Copper
	75/80	60864
	85/90	60867
	100	60870
	120	60872
	150	60875
	for soldering price per kg, 5 pieces = 1 kg



Half bead

	Dimension/length in mm	Copper
	60	60881
	76	60884
	80	60885
	87	60887
	100	60890
	120	60892
	150	60893
	for soldering



Vent cap

	Dimension/length in mm	Copper
	50	60760
	60	60761
	76	60762
	80	60763
	87	60764
	100	60765
	120	60766
	to plug in



Down pipe clip with striker pin 140 mm

	Dimension/length in mm	Copper
	60/140	60243
	76/140	60244
	80/140	60245
	87/140	60246
	100/140	60247
	120/140	60248
	150/140	60249



Down pipe clip with striker pin 200 mm

	Dimension/length in mm	Copper
	60/200	60263
	76/200	60264
	80/200	60265
	87/200	60266
	100/200	60267
	120/200	60268
	150/200	60269



Down pipe clip with threaded nut M 10

	Dimension/length in mm	Copper
	60	60223
	76	60224
	80	60225
	87	60226
	100	60227
	120	60228
	150	60229
	varžtui M 10
